101017 - Contact Grill Twin / Ribbed

Model Number: PG-2SA

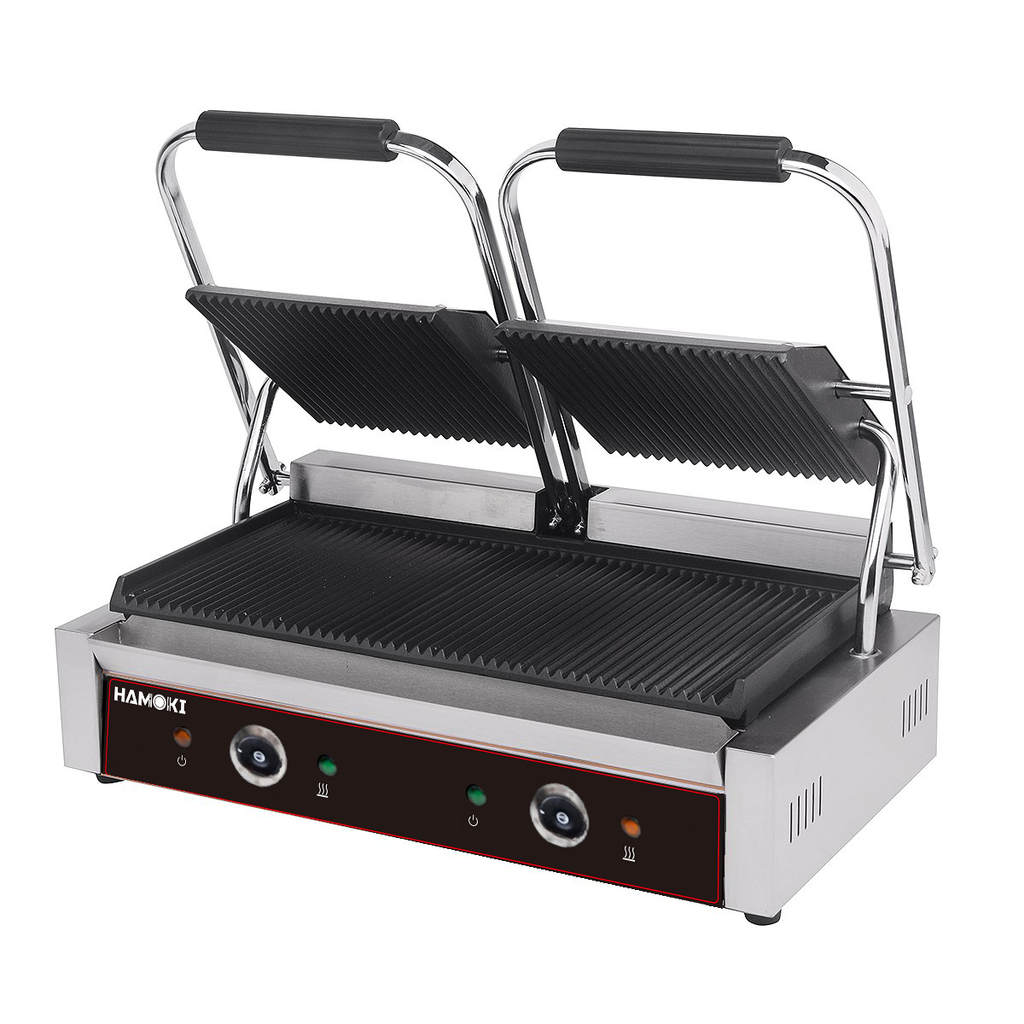

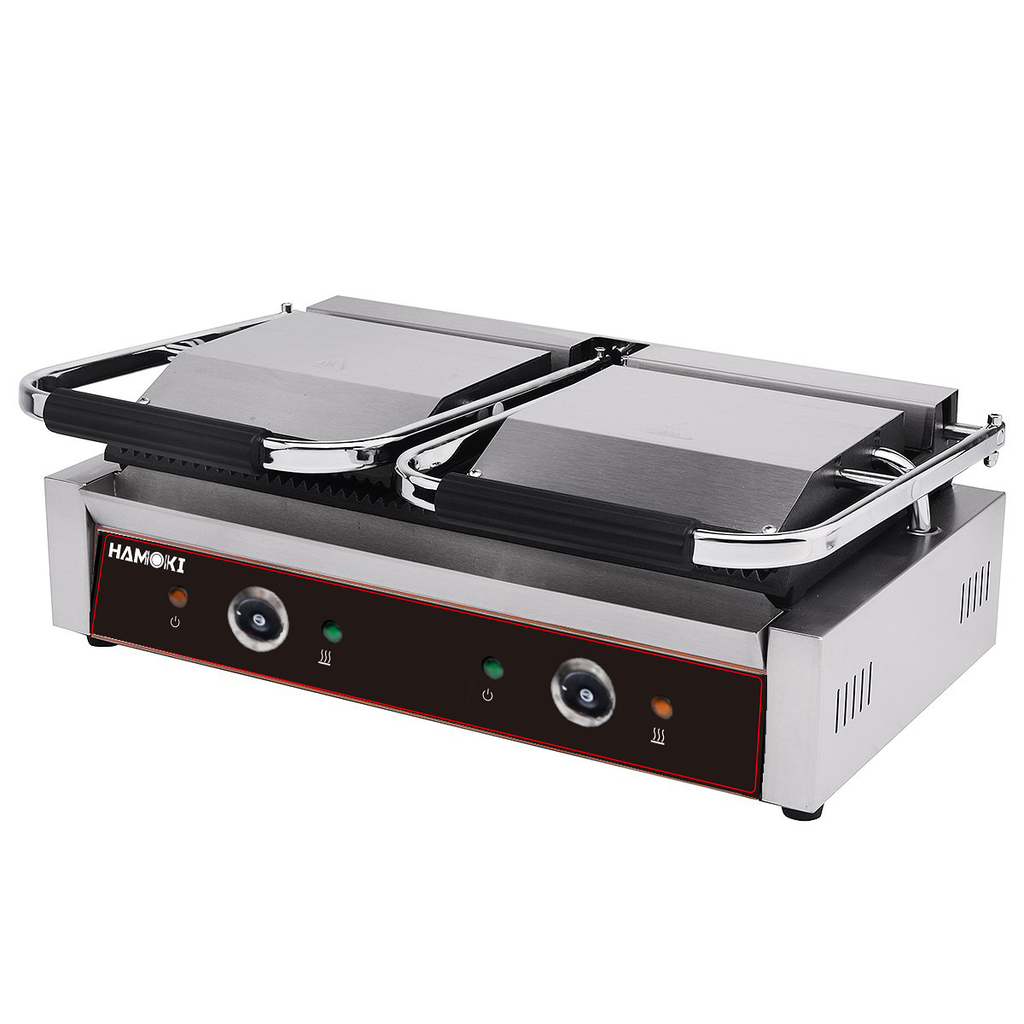

The Hamoki Contact Grill is a great value Bistro Contact Grill. It has a robust stainless steel structure with ribbed cast iron plates for long-term usage and healthy grilling, and it's perfect for burgers, steaks, paninis, and toasted sandwiches in busy restaurants. You have complete control over the entire grilling process with an adjustable swivel head and a changeable heat knob for varied thicknesses and temperatures.
It is also supplied with a removable grease tray and griddle scraper for easier cleaning.

• Cast iron plate with ceramic coating to improve efficiency
• Stainless steel structure
• EGO thermostat, durable and robust
• Temperature range is 50-320°C
• Hi-limit ensures safety operation
• Rotating shaft suspension system
• Stainless steel oil collector
• Bakelite handle, cool to touch
• Steel wire pipe to last longer
• Easy access to back rotating shaft, easy to adjust tightness
• Anti-slip rubber foot
• Rock on/off switch with illuminator
• Different plate type available
• Worktop to handle when open is 510mm

This product is covered with a Manufacturer’s 1 Years Parts Warranty.

Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.

DIMENSIONS (WxDxH): 570 x 305 x 210 mm
WEIGHT: 28 kg
POWER: 2 x 1.8kW
PLATE TYPE: Top & bottom grooved
COOKING SIZE: 475 x 230 mm

TECH SHEET
WIRING DIAGRAM
EXPLOSIVE DRAWING
